Description

Holds heavy objects in panel building materials thanks to the large contact area of the expanding arms.
Flexible during installation: Screw can be loosened and tightened again.
No over-rotation: The claw on the rim of the plug holds the plug in the panel building material.
Suitable for pre-positioned installation.
Complete with metric screw.

Due to the extensive range, the HM is suitable for board building materials with a thickness of 3-50 mm and thus suitable for a number of different applications.
The metric internal thread allows the attachment to be removed and refitted several times, thus offering the best possible flexibility.
The HM’s expanding arms ensure a large supporting surface, thus allowing a high load-bearing capacity.
The claws around the edge of the fixing penetrate the board building material, preventing the fixing from rotating, thus ensuring a secure installation.

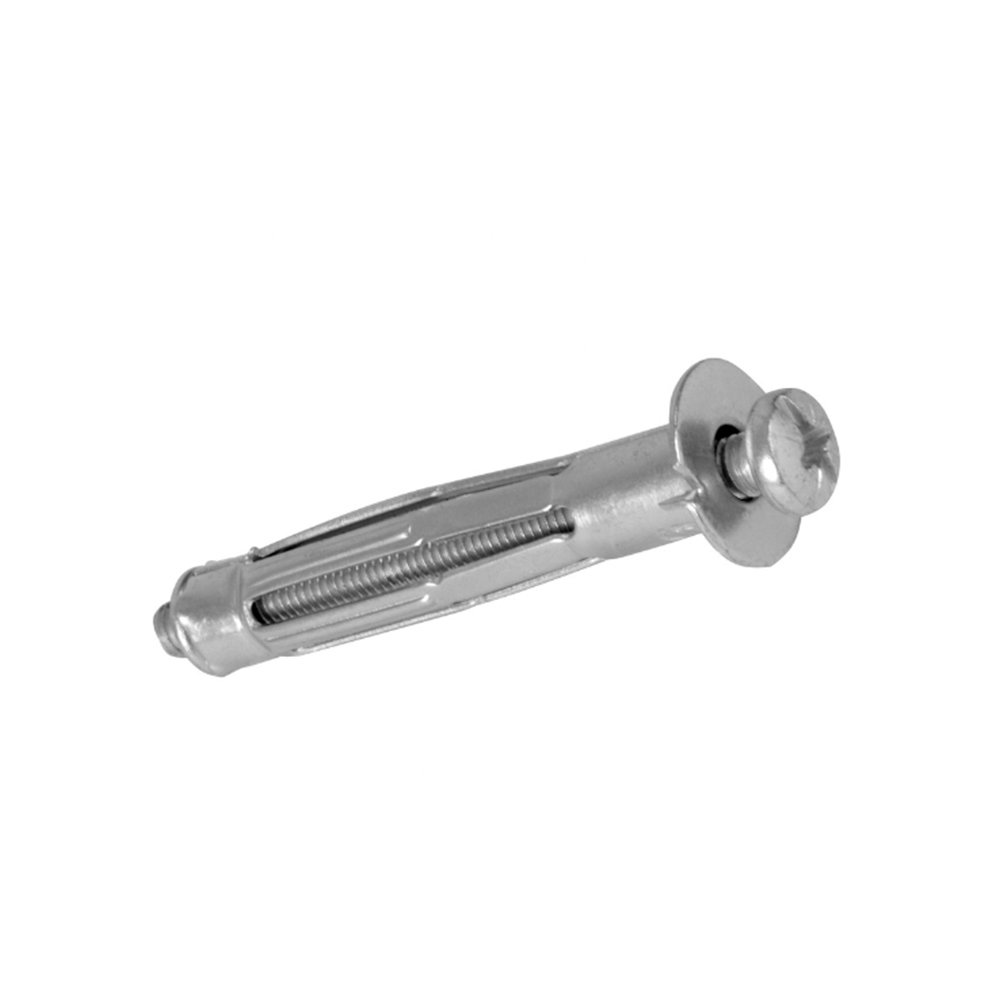

The fischer cavity metal anchor HM-S is a versatile cavity fixing with a metric screw for all panel building materials. The fixing is set with the fischer installation pliers HM-Z 1 in the pre-positioned installation. The fixing is pulled in the cavity against the board building material with the pliers. In this case, the expanding arms swing open and press onto the reverse side of the board. Alternatively, assembly can be carried out either with a screwdriver or a cordless screwdriver. The cavity metal anchor HM-S is suitable for fixing lights, towel rails, and curtain rails.

Applications

Pictures
Lighting
Light shelves
Towel rails
Mirror cabinets
Curtain rails
Sub-structures

Building materials

Gypsum plasterboard and gypsum fibreboards
Cavity floor slabs
Light building boards made of wood wool
Chipboard
Plywood boards

Functionality

The metal cavity fixing HM is suitable for pre-positioned installation.
The fixing should be selected based on the thickness of the board building material, to allow the very best expansion in the cavity.
During installation, the expanding arms swing open and press onto the reverse side of the board.
The HM can be installed using installation pliers. If using a battery operated screwdriver or screwdriver for installation, the pre-assembled screws must be removed first. When screwing in and expanding the fixing, the attachment, or a max. 6 mm plate, needs to be used as a turning stop.

Additional information

Pack size	20 pcs, 50 pcs, 100 pcs
